CNC Spring Making Machines and Spring Formers

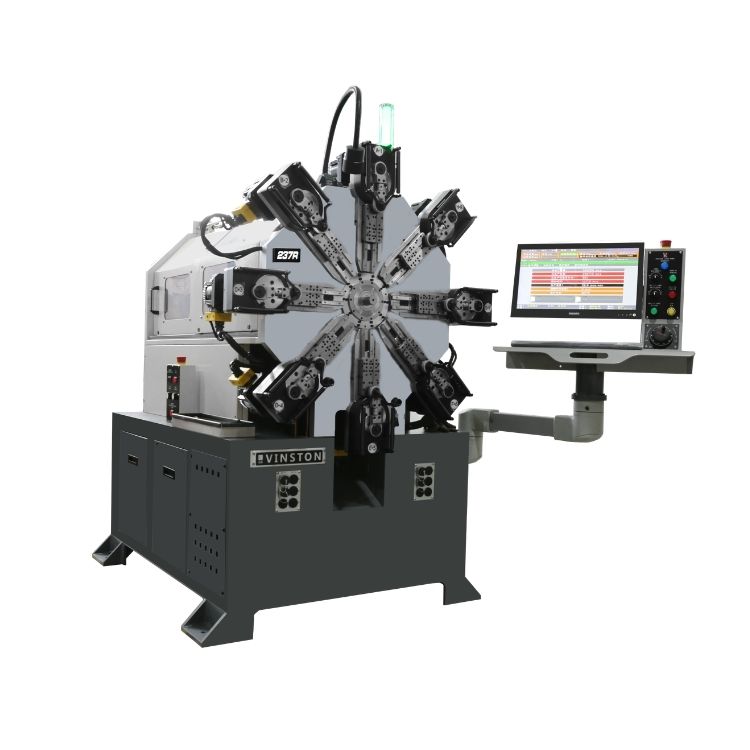

CMM-12-237R Spring Machine

Vinston the CMM-12-237R spring machine. It can produce springs with wire diameters ranging from ?0.4 to 2.3 mm and various wire forming parts. This machine adopts a unique camless and armless design, controlled by multiple independent servo motors. It is capable of manufacturing a wide variety of special-shaped springs, compression springs, tension springs, double torsion springs, battery springs, flat springs (clock springs), and various wire-formed components. It offers high precision, quick setup, and stable reliability.

GET A QUOTE

Product Advantage

1、All servo slides utilize double rails for stable and precise adjustments.

2、X-Y slide (lateral slide) facilitates pitch adjustments and provides an extra blade option.

3、Dual or two spinner support.

4、Fault detection and warming systems provide lights out production.


Technical Parameters

MODEL CMM-12-237R
Wire Dia. 0.4-2.3mm
Max. Wire Feed 10000.00mm
Min. Wire Feed 0.01mm
Max. Wire Feed Length Unlimited
Number Of Axes 12 Axis（Spinner & X-Y included）
Power 14.75KW
Voltage 220V/380V/410V
Hardware Industrial
Voltage Regulator Power 15KVA
Air Compresser System Air pressure 5-6kg/cm
Air cylinder 3pcs
Dimensions Depth 2020mm/80"
Width 1440mm/57"
Height 1800mm/71"
Machine Weight 1600KG/3528 lbs

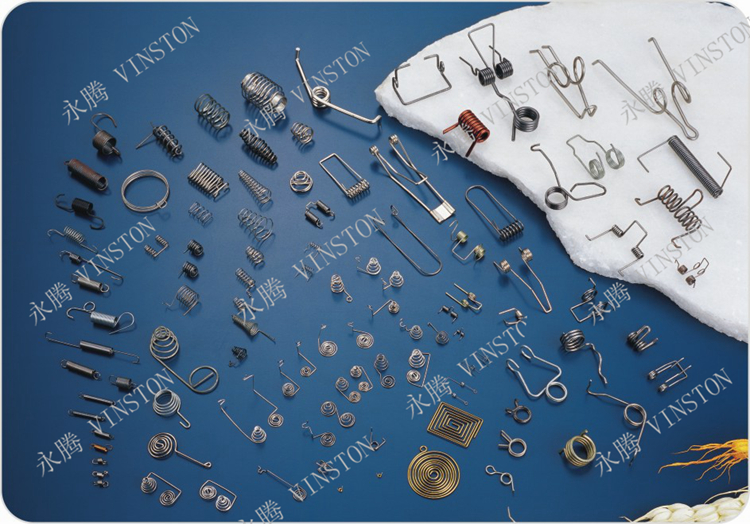

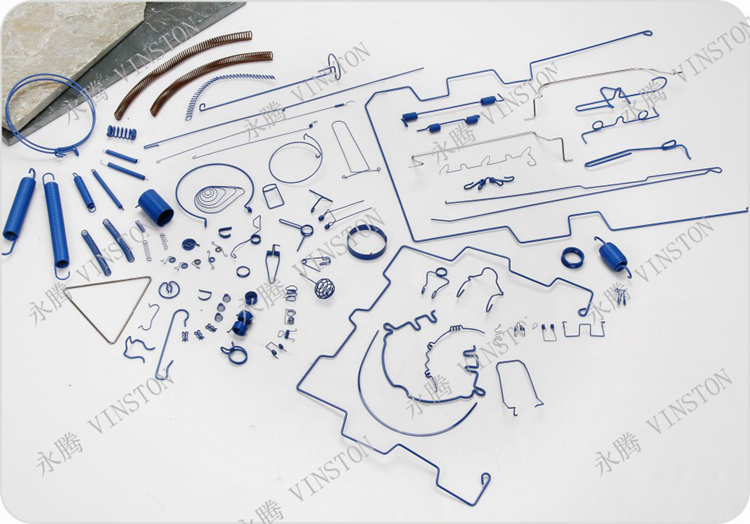

Sample Display
